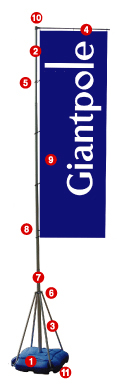

| 1. Base Tank - Light weight base tank is
made from durable plastic material. (Capacity 18.5
Gallons; width 25.5') 2. Pole - Anodized aluminum (four step
system).
3. Supporter - Umbrella-rib type supporters are connected
to base tank and firmly hold the pole.
4. Arm - Arm is connected to the top of pole and
holds the top of banner.
5. Rings- Four rings are attached to the pole to provide
natural rotation of banner fabric by wind. Three rings are
attached to the arm to hold the top of the banner.
6. Bracket - Bracket surrounds the pole and connects with
supporters.
7. Release Button - Ball-type buttons make easy releasing
and folding.
8. Stopper - Prevents banner rolling in wind. Slide it
always above the lowest ring after installation.
9. Banner - Can be in different size and fabric. Light
weight is recommended. Best fabric is flag material.
Recommended size 3.5' x 11' (not included).
10. Fixing Bolt- Prevents the arm from being separated
from the pole.
11. Snap Ring - Locks the supporters at the corners of the
base tank. |
